Part #: AAA-6100
Model: WID330
ARMOR Beacon™ captures real-time power, location, and condition intelligence from any asset. It installs in minutes, operates globally, and feeds verified data directly to ARMOR Asset Central™.
8+ Year Battery Life
BLE 5.2 + Wi-Fi
IP67 Waterproof
Easy Installation
ARMOR™ Platform

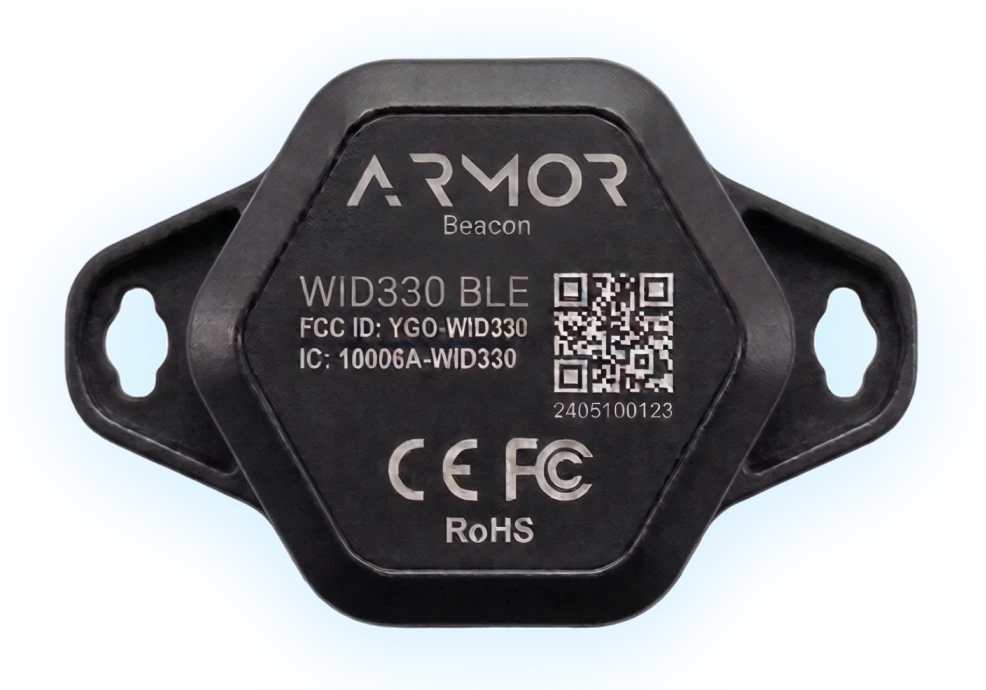

ARMOR Beacon™ is a next-generation Bluetooth Low Energy (BLE) connected asset device engineered by ARMOR™ Technologies Inc. It installs in minutes, operates globally, and secures verified intelligence directly to ARMOR Asset Central™ with full asset visibility and continuous control.
Power, runtime, and location captured continuously from every connected asset.
BLE 5.2 with iBeacon and Eddystone protocol support. 100-meter transmission range.
Fully sealed against dust and water. Built for industrial, outdoor, and field environments.
CR2450 battery with up to 8+ year life. Health reporting built in. No surprise failures.
Built-in temperature sensing for condition-aware asset intelligence. Operating range: -20 to +60°C.
All intelligence feeds securely to ARMOR Asset Central™, enhancing your existing systems.
General
Model
WID330 (P/N WID330)
Part Number
AAA-6100
Material
ABS
Shell Color
Black
Dimensions
55.7 x 40.5 x 12.9 mm (L x W x H)
Weight
19g ± 1g (including battery)
Function
Connected asset intelligence device
Compliance
CE (EU RED EN 300 328, EN 301 489, EN 62368-1), FCC, RoHS
Manufacturer
ARMOR™ Technologies Inc., Decatur, Illinois, USA
Power System
Battery
1 x CR2450, 620 mAh
Battery Life
2+ years (0 dBm, 1s interval, default)
5+ years (0 dBm, 3s interval)
8+ years (0 dBm, 5s interval)
Connectivity
Bluetooth
BLE 5.2 (iBeacon + Eddystone protocol)
Max Transmission Range
100 meters (maximum transmit power in open area)
Environmental
Operating Temperature
-20°C to +60°C
Waterproof Rating
IP67
Features
Installation
Mounted with double-sided tape (preferred) or screws (optional)
Temperature Sensor
Supported
APP Configuration Tool
QuecTag
Magnet Activation
Magnet-activated power on
LED Indicator
Included
Protocol Support
iBeacon and Eddystone
Purpose-built hardware for every asset. ARMOR Beacon™ accessories and mounting options engineered for seamless integration with the ARMOR™ Asset Management platform.
SKU: AAA-6100

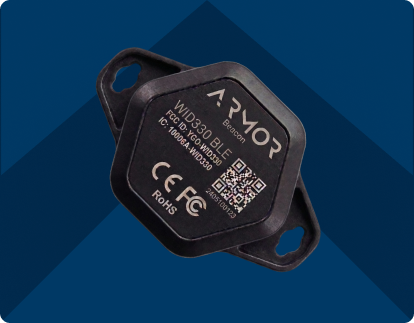

ARMOR BeaconTM (BLE)
SKU: AAA-6101

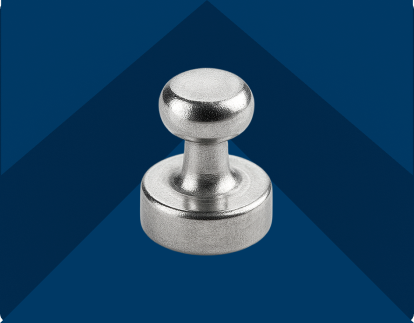

ARMOR BeaconTM – (BLE) Magnet Pin
For reseller or volume programs, contact the ARMOR™ team directly for volume pricing and distributor agreements.
ARMOR Beacon™ is designed for any environment where physical asset visibility matters and manual processes are not enough. It attaches to virtually any asset and begins delivering verified intelligence immediately.
Track utilization, location, and runtime across vehicles, equipment, and mobile assets.
Temperature and location intelligence for perishable goods, pharmaceuticals, and sensitive cargo.
Real-time inventory awareness and asset location across large warehouse and distribution environments.
Attach to high-value equipment on active job sites. Know what you have, where it is, and how it is performing.
Attach to fixed assets that rarely move but must always be accounted for. Continuous condition awareness without manual checks.
Integrate ARMOR Beacon™ intelligence into products for immediate real-world performance data.
Certifications
CE — EU RED EN 300 328
EN 301 489
EN 62368-1
RoHS
FCC
ARMOR™ Pen-Test Verified
Model WID330 (P/N WID330). Developed by ARMOR™ Technologies Inc., Decatur, Illinois, USA. Protected by U.S. Patent No. 8,601,084 and additional patents pending.
Describe your environment and we will confirm the right configuration for your assets.
ARMOR Beacon™ serves as the field capture point, collecting signals, location updates, and temperature readings that feed directly into ARMOR Asset Central™ for verified, real-time asset intelligence.
ARMOR Asset Central™ transforms this intelligence into actionable insights: maintenance alerts, automated orders, TCO reports, and fleet visibility across sites. ARMOR Beacon™ initiates the process, while ARMOR Asset Central™ finalizes it.
Our team will help you configure the right ARMOR BeaconTM setup for your assets, from single units to full fleet deployments
