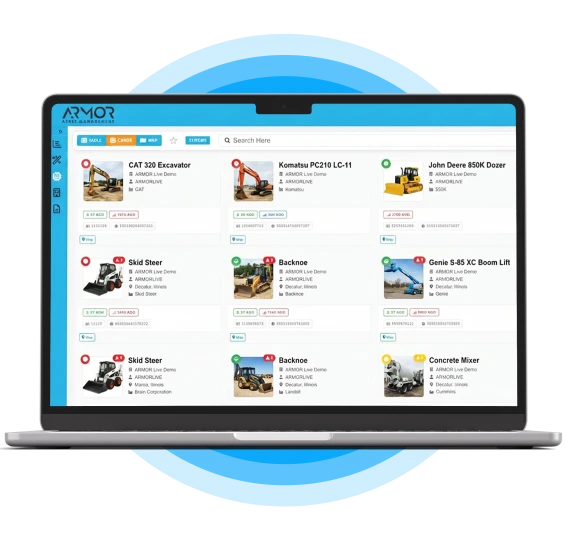

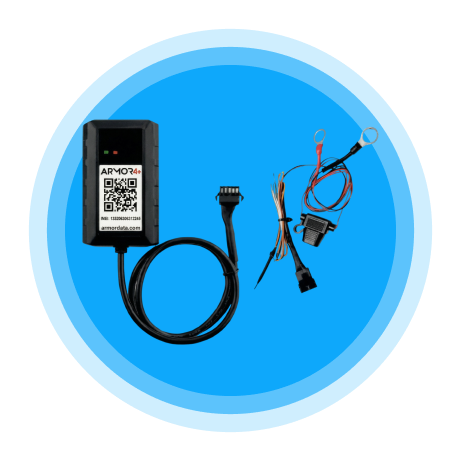

ARMOR 4+™ turns ordinary equipment into connected, intelligent assets. It installs in minutes and reports power, runtime, and location securely to ARMOR Asset Central™, all from one platform.
Field Hardware Hub
Patented Battery Intelligence
LTE Cat-M1 / NB-IoT
ARMOR 4+™ turns ordinary equipment into connected, intelligent assets. It installs in minutes and reports power, runtime, and location securely to ARMOR Asset Central™, all from one platform.
Global LTE
Real-Time Intelligence
Indoor/Outdoor GPS
IP67 Rugged
BLE 5.2 Sensors
6 to 90V DC

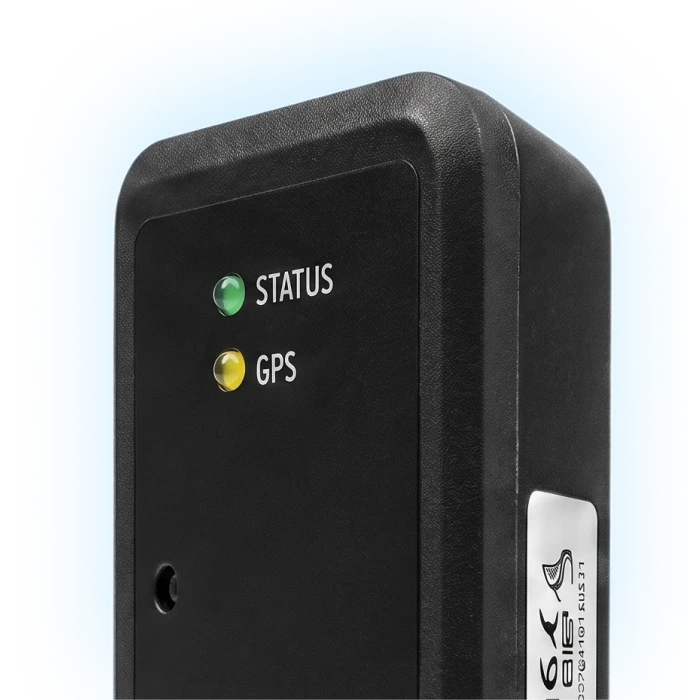

ARMOR Track™ by ARMOR™ Technologies Inc.ARMOR Track™ by ARMOR™ Technologies Inc. installs quickly, operates globally, and secures verified intelligence directly to ARMOR Asset Central™. It adds Qi wireless charging, BLE 5.2, and temperature and light sensors without compromising the rugged, waterproof enclosure.
LTE Cat M1 / NB2 with 2G fallback using a unique antenna solution. Operates across global networks without configuration changes.
Li-Polymer 2400 mAh battery with standby current under 10 microamps. One report per day delivers a full year of field operation.
5V / 1A Qi wireless charging built in. Recharge without removing the device from the asset or breaking the waterproof seal.
Fully sealed against dust and water. Operates from -20 to +60°C. Built for outdoor, industrial, and harsh field environments.
Built-in temperature sensor with 1°C accuracy and a light sensor for tamper detection and ambient condition awareness.
Multiple mounting alternatives using a unique clip-on design. Attaches securely to virtually any asset without permanent modification.
General
General
87 x 51 x 30 mm (3.43 x 2.01 x 1.18 in)
Magnetic case: 87 x 51 x 33.5 mm (3.43 x 2.01 x 1.32 in)
Weight
150g / 5.29 oz
Magnet-mounted: 170g / 6.0 oz
Battery
Li-Polymer 3.7V / 2400 mAh
Standby Time
Up to 1 year (1 report/day)
Standby Current
Under 10 microamps
Standby Conditions
LTE Cat M1 / NB-IoT, CSQ above 15, 25°C ambient, 1 report/day, no sensors active
Network and Connectivity
Network
LTE Cat M1 / NB2 with 2G fallback
GNSS
GPS, GLONASS, BeiDou, Galileo
Protocols
TCP, UDP, MQTT, CoAP
BLE
BLE 5.2 protocol
Charging Method
5V / 1A wireless (Qi)
Waterproof
IP67 compliant
Operating Temperature
-20°C to +60°C
Function Button
Power on / off and working status check
Temperature Sensor
Supported. Accuracy: ±1°C
Light Sensor
Tamper detection and ambient light awareness
Internal Motor
Vibration feedback after successful function button operation
Magnetic Mounting
Optional case for metal surfaces
Certifications
EU RED EN 60310-1/2, Radio Equipment Directive (2014/53/EU)
Security
ARMOR™ internal penetration-testing verified
Supplier
ARMOR™ internal penetration-testing verified
Use only approved Queclink-compatible wireless chargers. Using unapproved chargers may cause heat, battery failure, or burst. ARMOR™ Technologies Inc., its distributors, and affiliates bear no responsibility for damages resulting from use of unapproved third-party chargers.
Purpose-built hardware for every asset. ARMOR Beacon™ accessories and mounting options engineered for seamless integration with the ARMOR™ Asset Management platform.

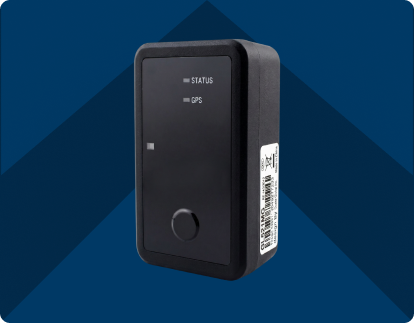

SKU: AAA-6075
ARMOR TrackTM – GL521MG

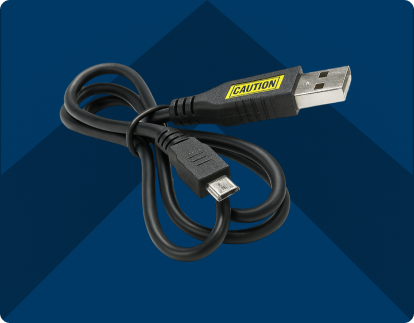

SKU: AAA-6099

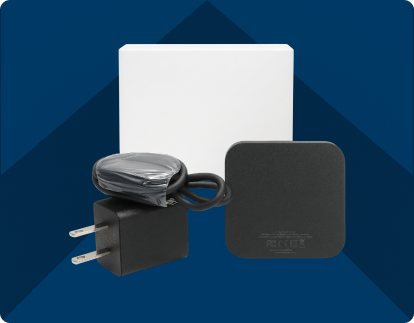

SKU: AAA-6102
ARMOR TrackTM – GL5X1MG Wireless Charger Kit

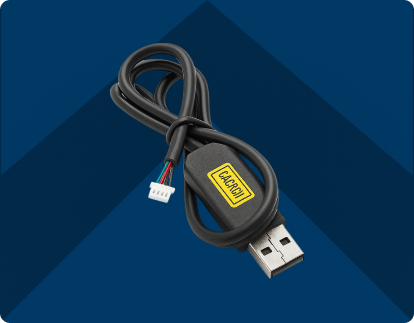

SKU: AAA-6098
ARMOR TrackTM – GL500M Data Cable
For reseller or volume programs, contact the ARMOR™ team directly for volume pricing and distributor agreements.
ARMOR Track™ attaches to virtually any asset and begins delivering verified LTE intelligence immediately, across a wide range of industries and field environments.
Temperature and location intelligence for perishable goods, pharmaceuticals, and sensitive cargo requiring continuous condition awareness.
Real-time asset location and condition awareness across large warehouse and distribution facilities.
LTE-connected intelligence for trailers, containers, and high-value cargo across long-haul and regional routes.
Continuous condition awareness for fixed assets that must always be accounted for. Tamper detection via internal light sensor.
Attach to high-value equipment on active job sites. Long standby keeps devices operational through extended field cycles.
Embed ARMOR Track™ intelligence into manufactured products for real-world field data from the moment of deployment.
Certifications
EU RED EN 60310-1/2
Radio Equipment Directive 2014/53/EU
ARMOR™ Pen-Test Verified
Supplied by ARMOR™ Technologies Inc., Decatur, Illinois, USA.
Describe your environment and our team will confirm the right configuration for your assets.
